48V 1000W 20 Inch Electric Bike Conversion Kit - Front Wheel E-Bike Motor Kit with LCD S866 Display, Brushless Gearless Hub Motor for Commuting, Off-Road & Urban Cycling
Free shipping on all orders over $50
7-15 days international
10 people viewing this product right now!
30-day free returns
Secure checkout
38533558
Description
How to Use: The function can be realized by connecting the line color definition interface on the controller to the socket of the accessory. For specific operation, please refer to the wiring diagram and manual. Specification: Item Type: Electric Bicycle Front Drive Motor Wheel Kit Weight: Approx.9450g / 333.3oz Material: Stainless Steel + Aluminum Alloy + ABS Plastic Product Size: Controller Box Size: Approx.148 x 83 x 42mm / 5.8 x 3.3 x 1.7in Meter: Approx.80 x 48mm / 3.1 x 1.9in Motor Wheel Type: Front Drive Motor Wheel Motor Rated Voltage: 48V Motor Rated Power: 1000W Motor Speed: About 35-45km/h Motor Speed: 325-331 RPM Motor Torsion (N.M): 57.5-59 N.M Motor Shift Size (mm): Approx.100mm / 3.9in Motor Matching Controller Current: 30A Motor Ring: P25D Motor Torsion Arm: M 14 Applicable Motor Brake Disc: Approx.160mm / 6.3in Motor Brake Type: Universal V Brake, Disc Brake Motor Wheel Position: Front Wheel Motor Structure: DC Motor Motor Magnet Height: 30H Number Of Magnetic Steel Poles Of Motor: 46 Motor Operating Temperature: -20℃ - 45℃ Controller Rated Voltage: 36V DC 48V DC Maximum Controller Current: 30A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level BOOSTER: 1:5 Connector Types: Ordinary SM Connector
Features

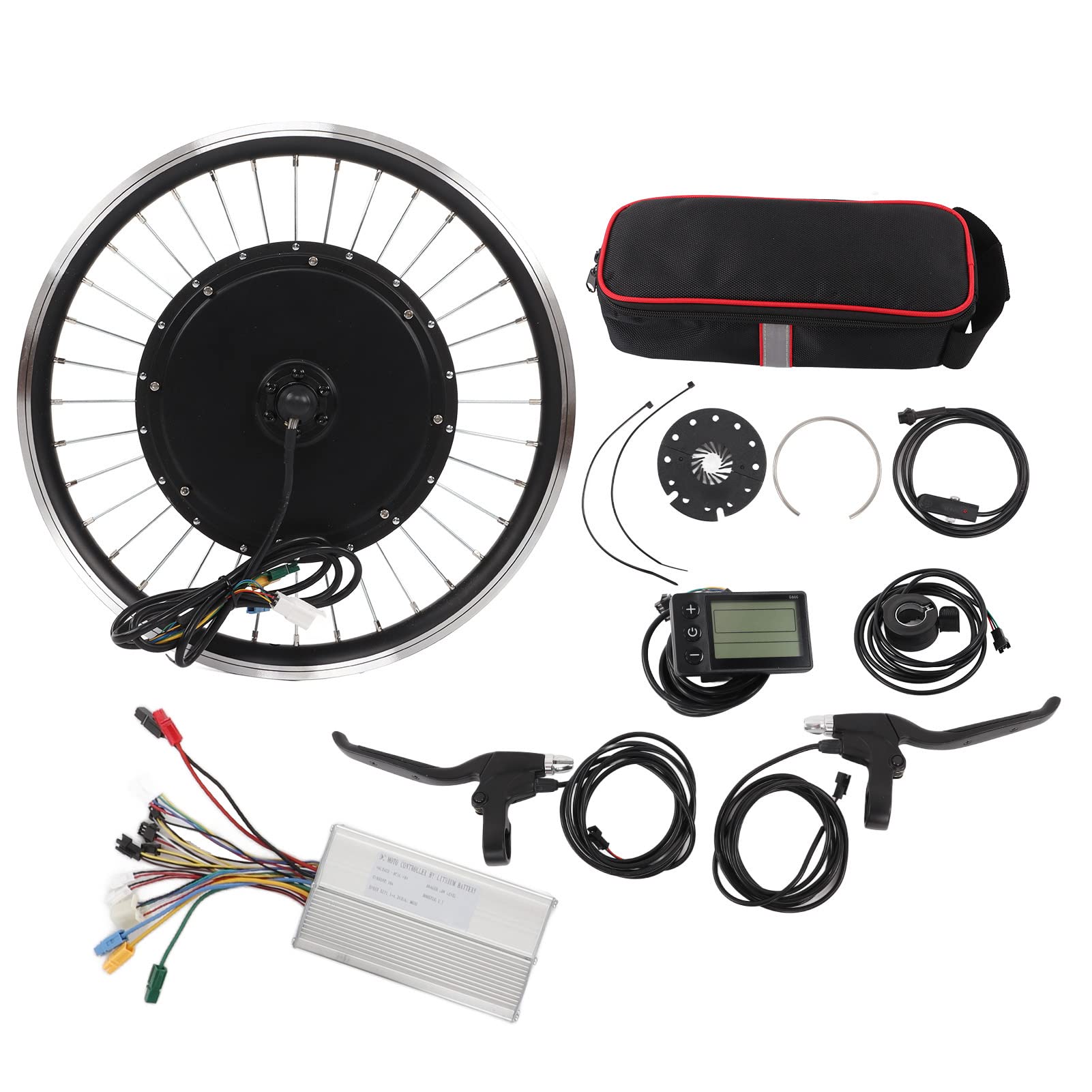

Included Accessories: 20 inch bicycle lithium refit front drive kit contains 48V 1000W front drive motor wheel, 30A controller, LCD‑S866 meter, 130X shifter, D12 assist sensor, a pair of power off brake handle, controller bag and manual.
Aluminum Alloy Wheel Ring: Brushless wheel hub DC motor adopts aluminum alloy wheel ring and is processed by fine technology, which effectively enhances the edge of the wheel ring. It is light, high end and generous, has strong bearing capacity, and is far more comfortable than other types of motor, so as to realize noiseless operation and let you fully enjoy the fun of riding.
Manufacturing Material: The controller housing is made of high quality metal with grooves designed to protect the internal circuitry from thermal overload due to good heat dissipation. LCD meter adopts high quality ABS material, light, rain proof, sturdy and durable.
Multifunction LCD‑S866 Meter: LCD‑S866 display meter has a variety of functions, LCD backlight display, can clearly display the status and data; When riding a bike, the product will display many useful data on your bike, such as power display, speed display, power indicator, fault indication, total mileage, single mileage, current speed, average speed, maximum speed, gear display, etc.
Wide Applicability: 48V 1000W front drive 20 inch motor wheel kit fits for bicycle mountain bike lithium refit front drive electric bike, DIY electric bike, electric bike, electric scooter, folding bikes, etc. Easy to maintain, electric bikes, mountain bikes conversion motor, high efficiency, greatly improve the fun of riding, suitable for cyclists like challenges.
