**RiToEasysports 36V 48V 15A Brushless Motor Controller - Waterproof Aluminum Alloy Sine Wave Controller for Electric Bike Conversion Kit (250W) - Perfect for E-Bike Upgrades & DIY Modifications** *(Use Case: Ideal for converting standard bicycles into electric bikes, enhancing speed and efficiency for commuting, leisure rides, or off-road adventures.)*
Free shipping on all orders over $50
7-15 days international
20 people viewing this product right now!
30-day free returns
Secure checkout
39273483
Description

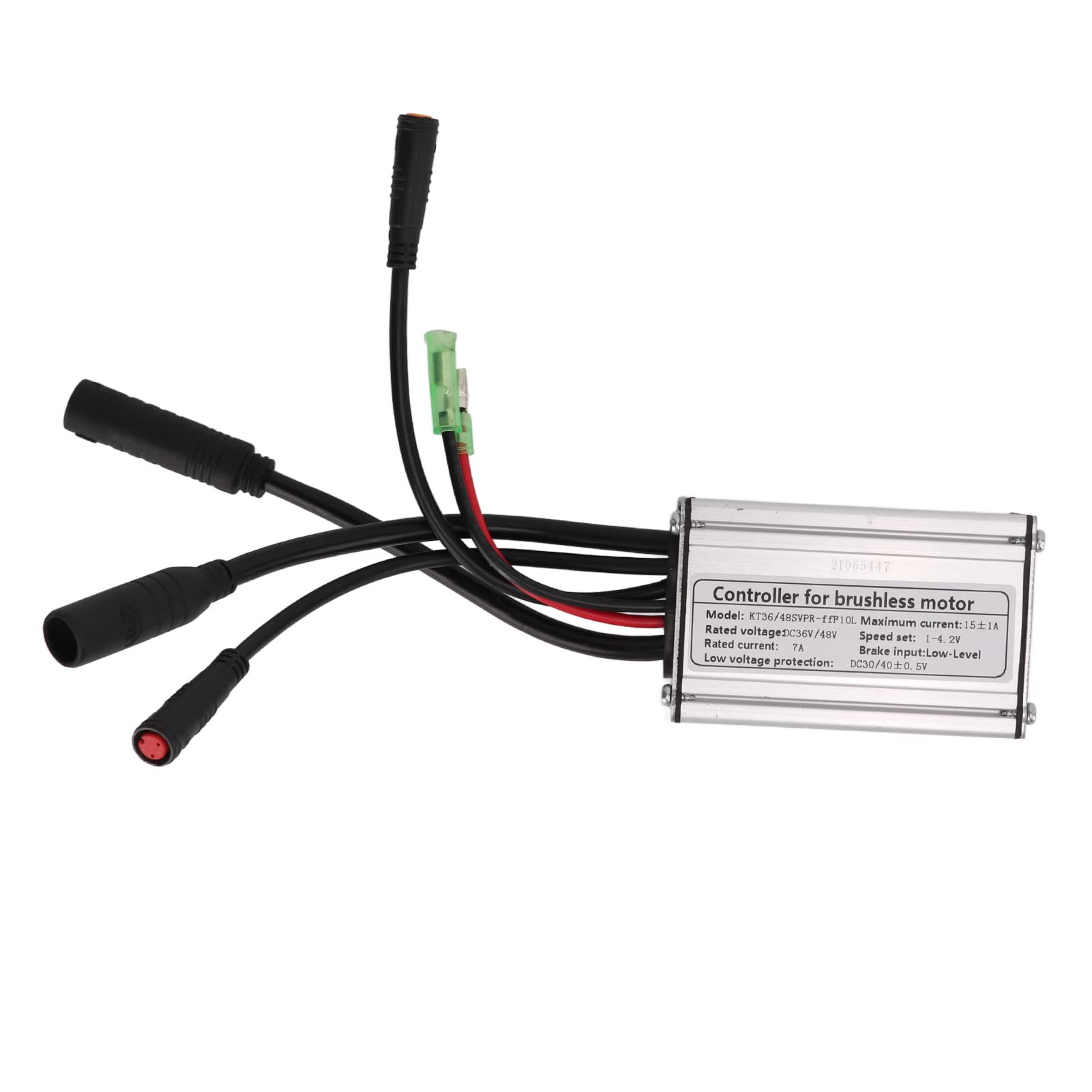

How to Use: Controller wiring instructions: Connect the corresponding line interface to realize the function. Specification: Item Type: Controller Material: Aluminum Alloy Controller Box Size: Approx. 82x52x31mm/3.2x2.0x1.2in Controller Type: Sine Wave Controller Connector Type: Waterproof Connector Maximum Current: 15±1A Rated Voltage: DC 36V/48V Speed Setting: 1-4.2V Rated Current: 7A Brake Input: Low Level Low Voltage Protection: DC 30/40±0.5V Controller Wire Color Definition: 1. Black Long Wire: motor wire 2. Red, Black Single Short Wire: power wire 3. Black Long Line (Fine Hole): one to four / one to five (9 cores) 4. Black Line Red Head: light wire 5. Black Line Yellow Head: PAS wire Package List: 1 x Controller 1 x Manual Note: It should be compatible with products with the same communication protocol, only suitable for KT series products. The motor does not need a brand, and the joint matching can be used.
Features
SENSITIVE BRAKING: The brushless motor controller can provide stable speed and sensitive braking and direction change control, make your ride smoother and safer.
EASY TO INSTALL:The wires and interfaces are durable, and ensure low malfunction of long time use.The cables have different colors for your easy installation.The brushless motor controller is easy to install and use, equipped with wiring identification instructions, and is usually suitable for 250W brushless motors.
GOOD HEAT DISSIPATION: The controller shell is made of high quality metal with groove design, good heat dissipation function, can protect the internal circuit and avoid thermal overload.
WATERPROOF FUNCTION: The waterproof function ensures maximum durability in any weather conditions, and the high performance wires and waterproof interfaces are durable, ensuring low failure rate for long term use.
SPECIFICATION: Maximum current is 15±1A, rated voltage is DC 36V/48V, speed setting is 1‑4.2V, rated current is 7A, low voltage protection is DC 30/40±0.5V.
