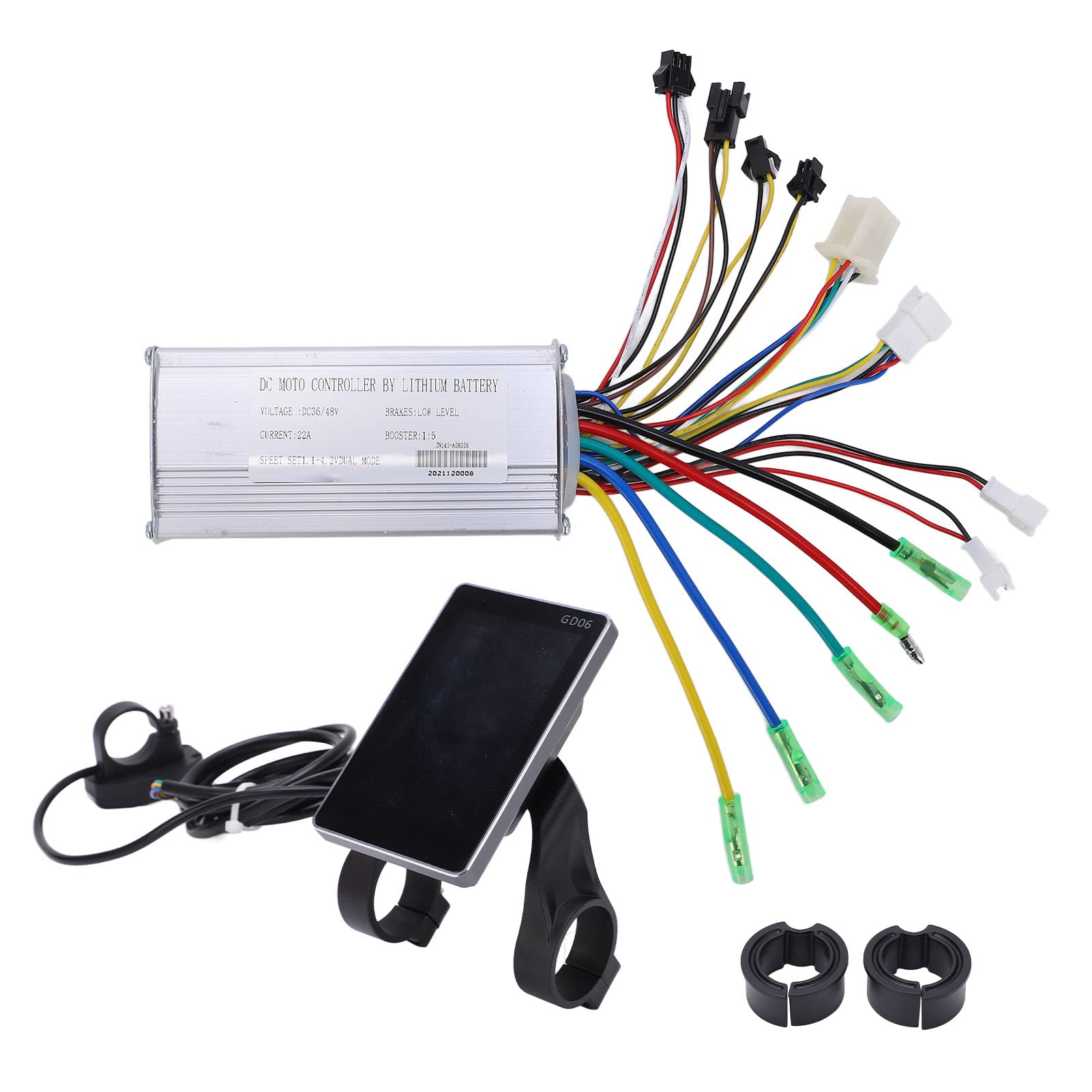

Vbestlife 36V 48V Electric Bike Controller Kit with LCD Display & Thumb Throttle - GD06 Motor Control Box for E-Bike Modification - Perfect for Commuting, Off-Roading & DIY Upgrades

Specification: Item Type: Electric Bicycle Controller GD06 Instrument Kit Color: As Pictures Shown Material: Aluminum Alloy + ABS Plastic Weight: Approx.728g/25.6oz Controller Box Size: Approx. 111x53x33mm/4.4x2.1x1.3in, Meter Size: Approx. 96x62mm/3.8x2.4in Controller Rated Voltage: DC 36V/48V Controller Maximum Current: 22A Controller Speed Setting: 1-4.2V Controller Brake Input: Low Level Booster: 1:5 Applicable Motor Power: 500W Controller Wire Color Definition: 1. Yellow, Green, Blue Single Big Head Line: Motor Phase Line 2. Red-white-black-blue-green-yellow Double Row Six-wire Port: Motor Hall Wire 3. Red and Black Single Big Head Line: Power Line 4. Red, Blue, Black, Green and Yellow Single-row Five-wire Port: Instrument Line (5pin) 5. Black and Yellow Lines (two): Power off Brake Handle Line 6. Red and Black White Lines: Throttle Dial Line (3pin) 7. Brown, Black and Yellow Wire: Power Sensor Wire (3pin) 8. Black and Red Lines (two): Headlight Lines GD06 Function Description: 1. Using Two Way Communication Protocol, the External Three Way Button is Easy to Operate; 2. Real Tme Speed Display; 3. Km/mile Display; 4. Intelligent Power Display; 5. Headlight Control; 6. 3 Level Adjustment of Backlight Brightness; 7. Five Gear Gear Control; 8. Mileage Display; 9. Fault Word Display; 10. Power Assisted Push Mode 6km/h, 11. Parameter Setting. Package List: 1 x Controller 1 x Instrument 2 x Instrument Gasket 1 x Thumb Throttle 1 x Speed Assist Sensor 1 x Controller Wiring Manual Note: Note that the size of the motor is consistent with the controller kit.
